Setting up a sub-micron clean room in the Weizmann Institute

Setting up a sub-micron clean room in the Weizmann Institute

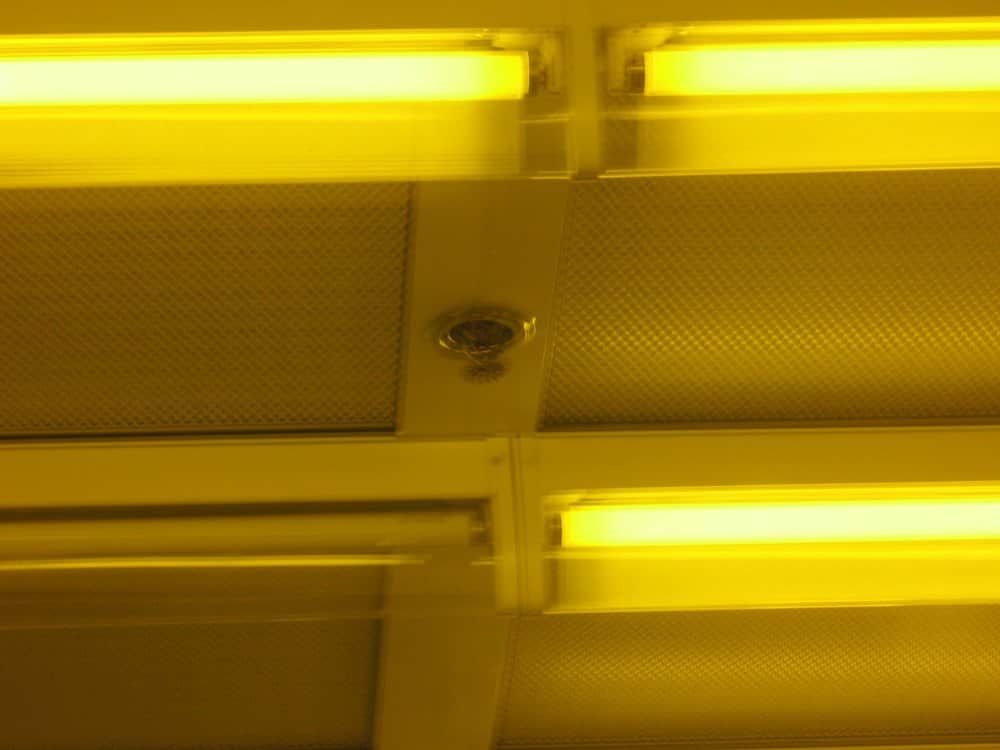

Setting up a sub-micron clean room in the Weizmann Instituteמכון ויצמן ספרינקלר בתקרת פילטריםמכון ויצמן תאורת נר

The project included:

Setting up a complex of “yellow” clean rooms for an electron microscope in the Sub-micron Department at the Weizmann Institute of Science.

Room structure:

Partitions - metal combining supplementary aluminum profiles.

Doors and windows - integral in thickness and as a continuation of the walls.

Ceiling - T-bar profiles filled with HPL.

Lighting – ‘Teardrop’.

Filters - 100% cover in the vicinity of the microscope; 50% cover in the washing area.


In the photographs:

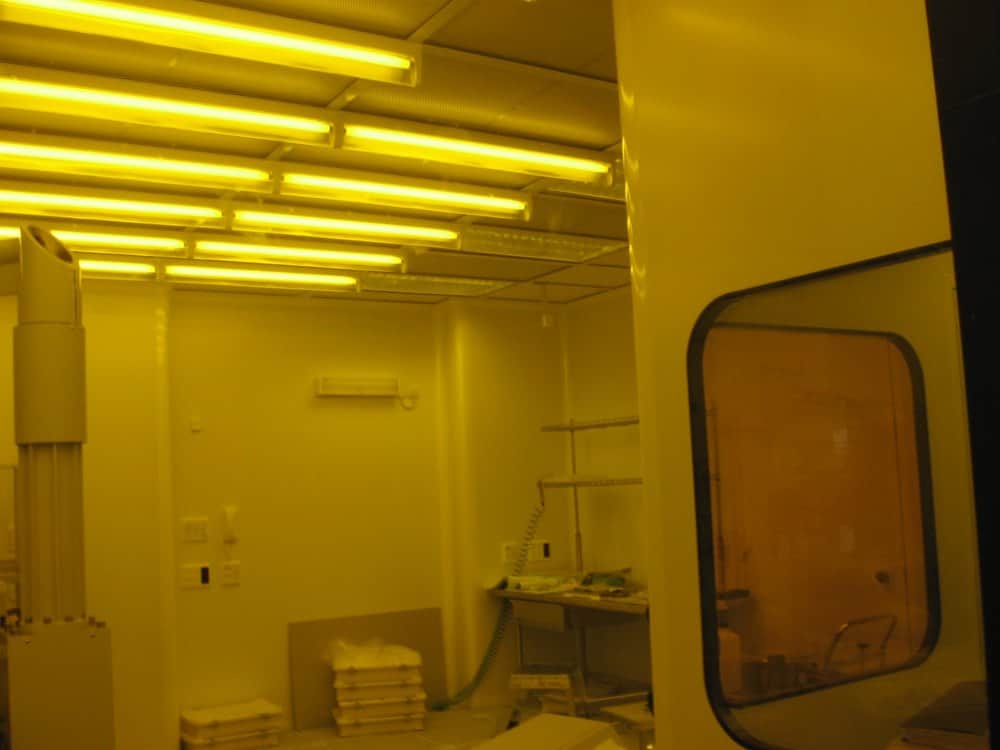

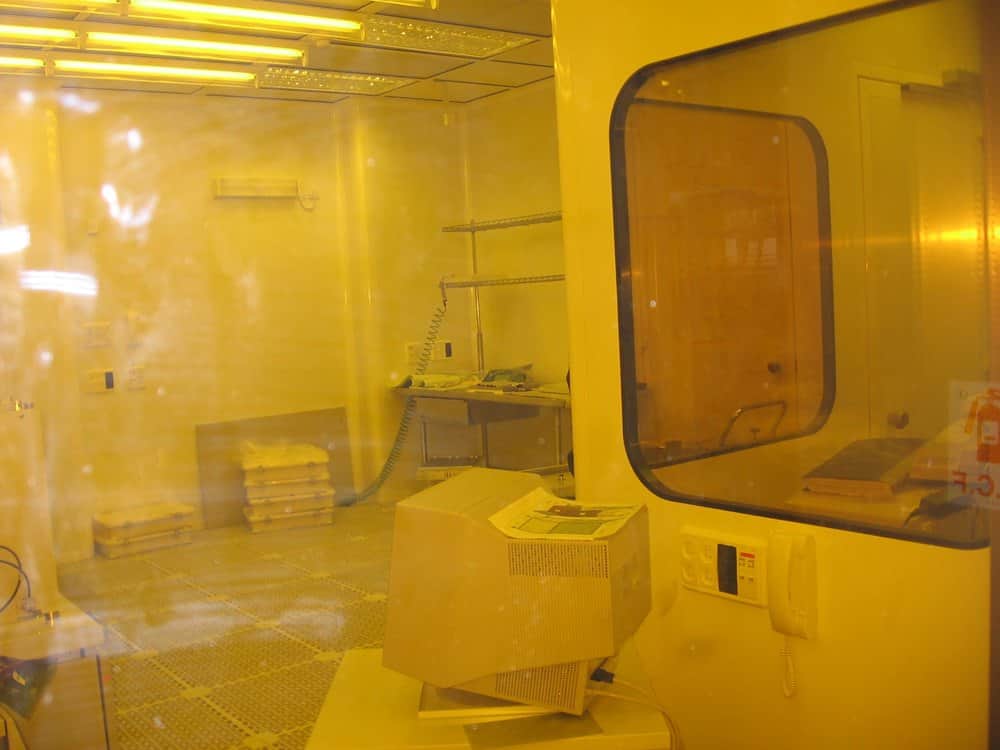

The “yellow” clean rooms as photographed from the ‘unclean’ corridor.
